Introduction

In this article I will demonstrate how to configure software Load Balancer (LB) for two OpenAMs.

OpenAM is a open source access management software provided by ForgeRock.

Load balancing aims to optimize resource use, maximize throughput, minimize response time, and avoid overload of any single resource. If a one server is down, LB redirect all requests to others servers which are up.

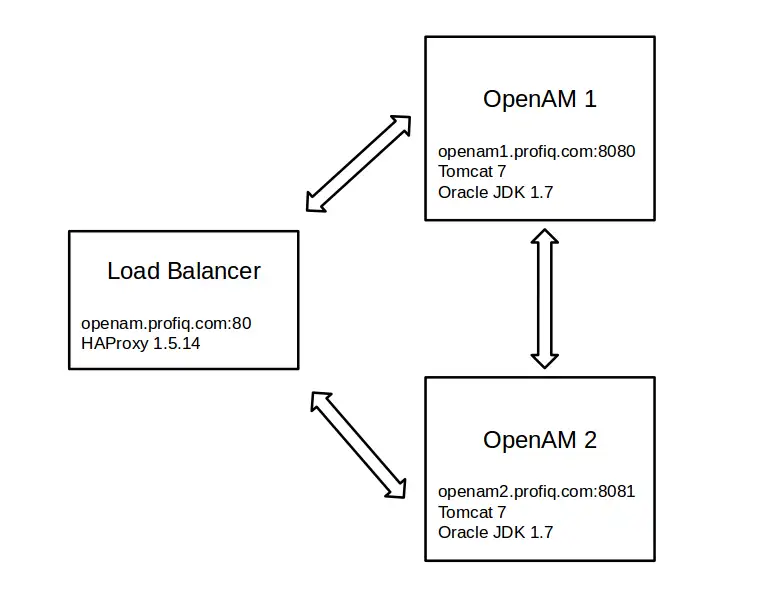

To simplify, I will configure LB, OpenAM 1 and OpenAM 2 on one virtual machine and OpenAMs will be configured with embedded data and config store. To read more about embedded config and data store please check chapters 1.4 and 1.5

here

.

Prerequisites:

• configured virtual machine
• 2 x apache tomcat
  • tomcat 1 is listening on port 8080
  • tomcat 2 is listening on port 8081 (conf/server.xml, also it is necessary to change the port for shutdown )
• edit /etc/hosts to include all hostnames (all hostnames will have the same IP, because they are on the same machine)
  • openam1.profiq.com
  • openam2.profiq.com
  • openam.profiq.com

Load Balancer

I used HA proxy software load balancer.

Download HA Proxy

You can download HA Proxy

here.

Install HA Proxy from source

1. Unpack HA Proxy:

# tar -xvf haproxy-1.5.14.tar.gz

2. Navigate into HA Proxy directory:

# cd ./haproxy-1.5.14

3. Compile HA Proxy. Compile for Linux kernel 2.6.32 or later and optimize the binaries for the install CPU architecture.

Note: you can check your linux version:

# make TARGET=linux2632 ARCH=native

# uname -a
Linux centos6-64 2.6.32-504.8.1.el6.x86_64 #1 SMP Wed Jan 28 21:11:36 UTC 2015 x86_64 x86_64 x86_64 GNU/Linux

4. Install the compiled binary:

# make install

5. Copy the HA Proxy to yours directory

# mkdir /opt/HA-Proxy-1.5.14
# cp /usr/local/sbin/haproxy /opt/HA-Proxy-1.5.14

Configure HA Proxy

1. Create the configuration file

# vim /opt/HA-Proxy-1.5.14/haproxy.conf

2. Add content into HA Proxy configuration file:

global
   maxconn 4096
   daemon

defaults
   mode http
   option tcpka
   retries 3
   option redispatch
   maxconn 1024
   timeout client 1h
   timeout connect 5000ms
   timeout server 1h

frontend fe
   bind openam.profiq.com:80
   default_backend be

backend be
   mode http
   balance roundrobin
   cookie SERVERID insert indirect nocache
   server openam1 openam1.profiq.com:8080 check cookie 1
   server openam2 openam2.profiq.com:8081 check cookie 2
   option http-server-close
   option redispatch
   appsession amlbcookie len 2 timeout 1h request-learn

Backend is configured for 2 OpenAMs (openam1 and openam2) and LB is listening on openam.profiq.com:80.

It is recommended to use stickiness (“appsession amlbcookie len 2 timeout 1h request-learn”) for the backend, it means, if you log in via openam1 a cookie is sent by the backend with backend-specific value, HA Proxy will then look for that cookie, and will store its value in a table associating it with the server’s identifier, for more info

see

.

You can find description for properties in to HA Proxy documentation

here

.

OpenAM 1

Download latest stable OpenAM

Download latest openam (currently it is OpenAM 12.0.1) from forgerock backtsage

here

.

Install OpenAM 1

1. Deploy downloaded openam.war into tomcat

# cp /opt/OpenAM-12.0.1.war /opt/apache-tomcat-7.0.50/webapps/openam.war

2. Start tomcat 1

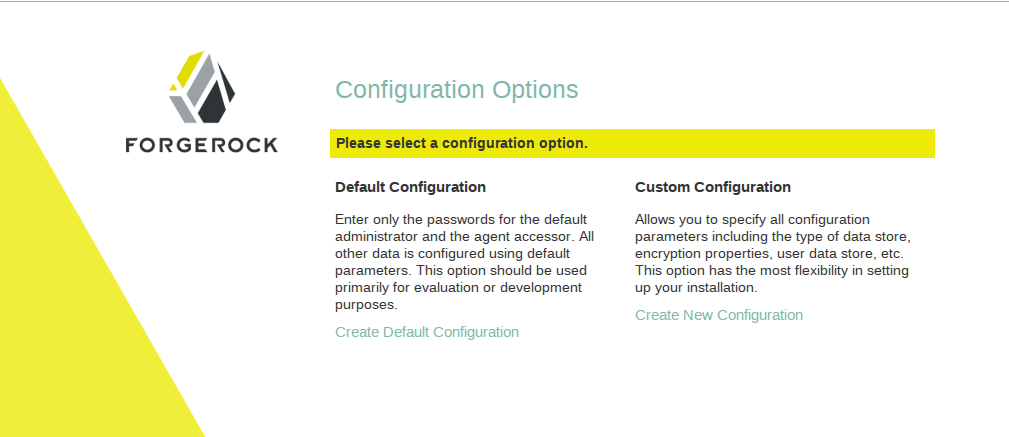

3. Hit the openam1 page: http://openam1.profiq.com:8080/openam and you will see OpenAM Configuration Page
4. Choose “Create New Configuration” and accept the license
5. Step 1: Set amAdmin password and click next
6. Step 2: Server config: Server URL = http://openam1.profiq.com:8080 Cookie Domain = .profiq.com Platform Locale = en_US Configuration Directory =/root/openam1

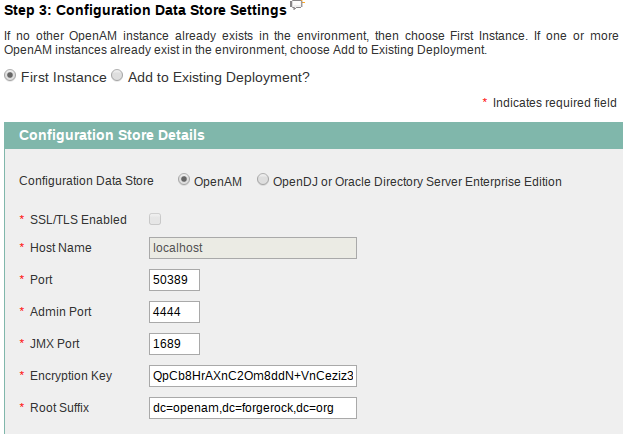

7. Step 3: Configuration Data Store Settings
8. Step 4: User Data Store Settings Set “OpenAM User Data Store”

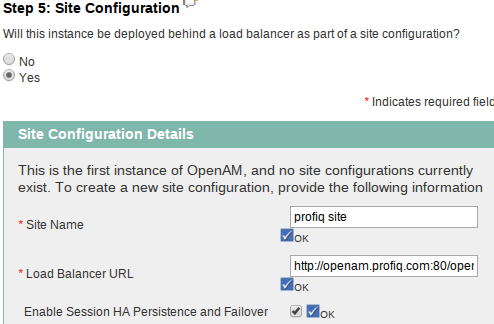

9. Step 5: Site Configuration
10. Step 6: Default Policy Agent User set password

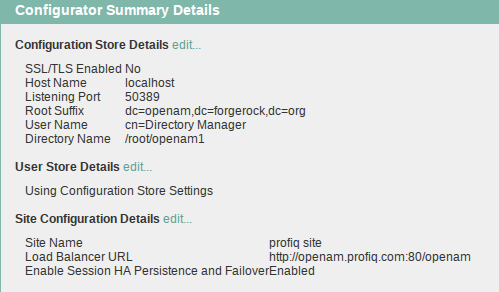

11. Summary
12. Create Configuration

Note

: For more info see

OpenAM install guide

OpenAM 2

Install OpenAM 2

1. Deploy downloaded openam.war into tomcat

# cp /opt/OpenAM-12.0.1.war /opt/apache-tomcat-6.0.39/webapps/openam.war

2. Start tomcat 1
3. Hit the openam2 page: http://openam2.profiq.com:8081/openam and you will see OpenAM Configuration Page
4. Choose “Create New Configuration” and accept the license
5. Step 1: Set amAdmin password and click next
6. Step 2: Server config: Server URL = http://openam2.profiq.com:8081 Cookie Domain = .profiq.com Platform Locale = en_US Configuration Directory = /root/openam2

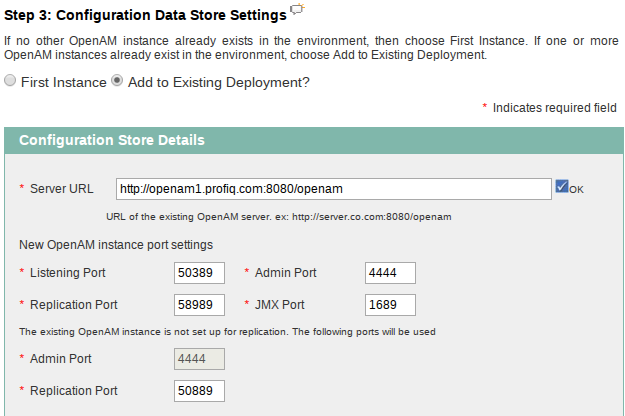

7. Step 3: Configuration Data Store Settings Set “Add to Existing Deployment” Server URL: http://openam1.profiq.com:8080/openam
8. Step 5 Site Configuration Site Name = profiq site Load Balancer URL = http://openam.profiq.com:80/openam Enable Session HA Persistence and Failover = true

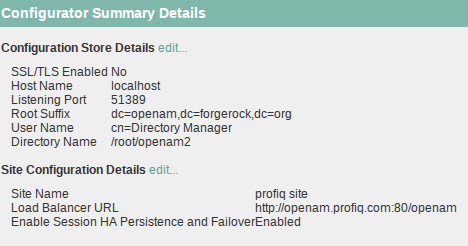

9. Summary
10. Create Configuration

Test Configuration

• Start load balancer:

# /opt/HA-Proxy-1.5.14/haproxy -f /opt/HA-Proxy-1.5.14/haproxy.conf

• Hit the load balancer: http://openam.profiq.com/openam
• Login as amadmin
• if you check cookies there will be cookie amlbcookie = 01 (01 is ID of server, in my case means you are logged via OpenAM1)
• delete all cookies and shut-down openam1, login again, and observe the cookie amlbcookie. You can observe that second OpenAM server will be used and one can see it by looking at amlbcookie = 02. This simulates purpose of load balancer, where if you have multiple users, load balancer will balance load in a way where it send user 1 to OpenAM 1, user 2 to OpenAM 2, user 3 to OpenAM 1 again etc. This is called round-robin algorithm (“balance roundrobin” = property from HA proxy config file).
