Integrating (ForgeRock) LDAP with MuleSoft

Introduction

We continue exploring

MuleSoft

software and we wanted to know, how easy it is to integrate an LDAP Directory that is not documented by MuleSoft at the moment. It should be easy, right? It is just the same LDAP protocol. We gave a try to

ForgeRock (OpenDJ)

.

You can find a short intro to the MuleSoft platform in our

previous blog

.

So in below article you will see what you need to do to connect MuleSoft Anypoint studio, using LDAP connector, with ForgeRock OpenDJ ldap server, what you need to configure and how you can test your final setup.

Prerequisites

I’m going to assume that:

1. you have installed Anypoint Studio and you are familiar withit,
2. you have installed LDAP connectorvia Anypoint Exchange in Anypoint Studio and
3. you have installed the LDAP server; you can find simple install instructions in a previous blog of ours.

Example using the Connector

OpenLDAP and Microsoft Active Directory is supported according to Mulesoft’s documentation. We are working with a ForgeRock OpenDJ instance instead. Although the integration of OpenDJ with MuleSoft isn’t explicitly documented, there is a general LDAP connector developed, so we attempted to reuse it for OpenDJ. All one needs to do, when configuring the connector for ForgeRock OpenDJ is to start off the default LDAP configuration that’s created for OpenLDAP and tweak it to work with OpenDJ. Here is the procedure step by step:

Download example LDAP connectors

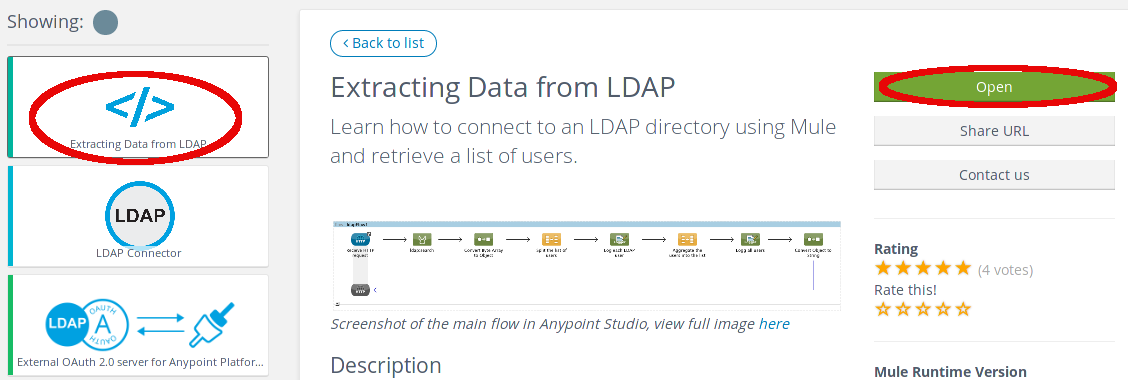

1. Start up Anypoint Studio

1. Click on Anypoint Exchange

1. Search LDAP and select Extracting Data from LDAP

2. You can read the documentation and click the Open button for the example that you download to the studio

Configuring components in the project

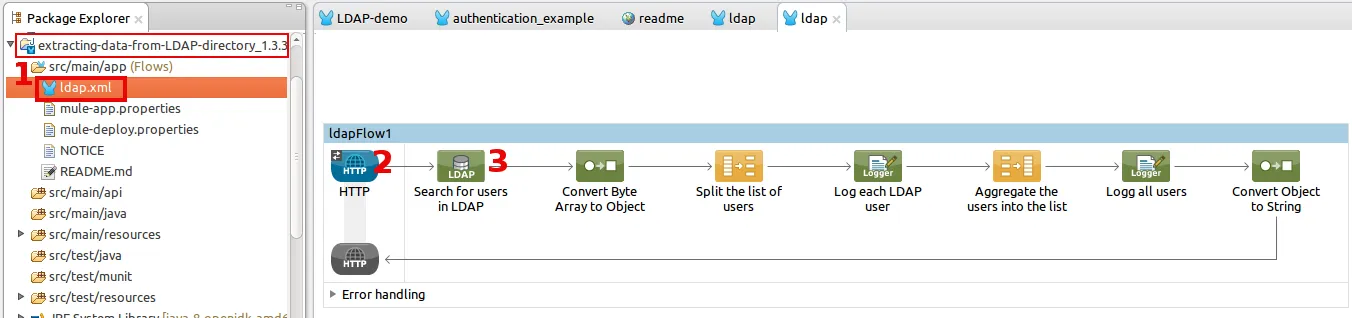

1. Use the Package Explorer to open the ldap.xml file of project extracting-data-from-LDAP-directory_1.3.3

2. Select HTTP connector in Message Flow

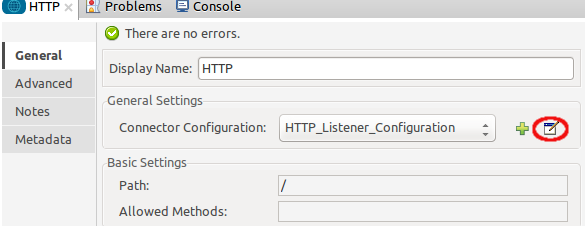

2.1 Click the

Edit

button for

Connector Configuration

or create a new connector configuration (Green plus button)

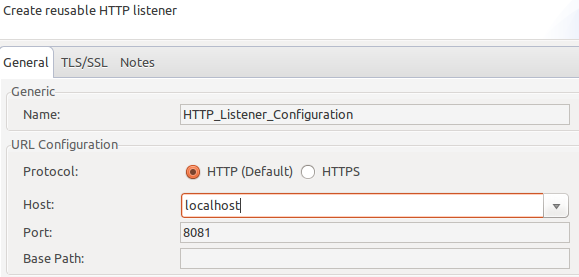

2.2 Fill

Host

and

Port

, example

Host:localhost

and

Port:8081

and save settings

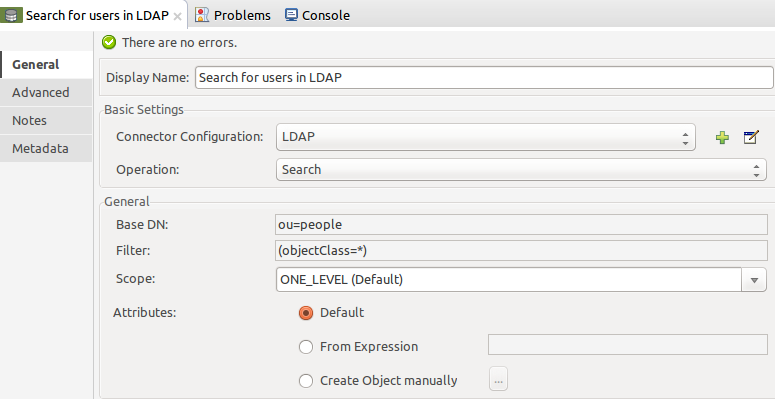

1. Select LDAP connector in Message Flow

3.1 Click on

Edit

button for List

Connector Configuration

or create new Connector Configuration (Green plus button) in

Connector Configuration

.

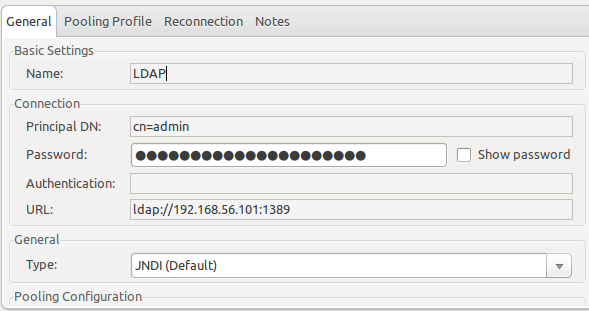

3.2 Fill

Principal DN

,

Password

,

URL

on your OpenDJ LDAP server. Watch out! This is different from the documentation. You need to change the default OpenLDAP configuration, where

Principal DN

equals to

“cn=admin,dc=example,dc=com”

to OpenDJ’s

“cn=Directory Manager,cn=Root Dns,cn=config”

. You can also enter an alias during the installation. I have entered

“cn=admin”

. Then save.

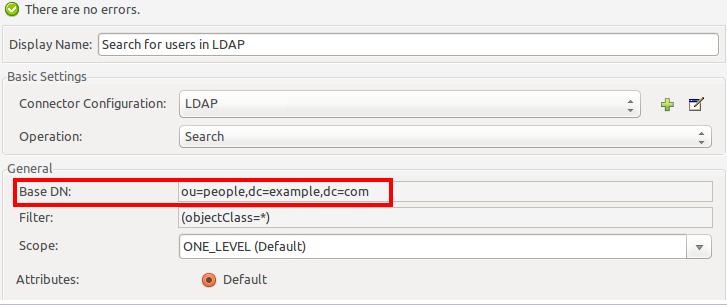

3.3 Modify

Base DN

in the

LDAP Connector->General

section to

“ou=people,dc=example,dc=com”

. Save.

1. Save the project

We can start the sample now. Click on the project with the right mouse button and select

Run

as->Mule application

. Once this is done, you can open a web browser and go to

”localhost:8081”

. You should be done with your configuration successfully, of your output looks similar to this one:

[dn: uid=user.38,ou=people,dc=example,dc=com

st: MI

homePhone: +1 103 029 5884

mail: user.38@maildomain.net

telephoneNumber: +1 108 598 2525

employeeNumber: 38

initials: ADA

mobile: +1 702 323 0280

postalAddress: Adda Acelvari$61703 Ash Street$Albuquerque, MI 34240

description: This is the description for Adda Acelvari.

cn: Adda Acelvari

l: Albuquerque

objectClass: person

objectClass: inetorgperson

objectClass: organizationalperson

objectClass: top

userPassword:: e1NTSEF9YUFoeEROd3N2MnN0Z1JCOVU1VGxGRjI2MFBMZEIyMzh6QUdZVGc9PQ==

uid: user.38

pager: +1 004 115 0851

givenName: Adda

postalCode: 34240

street: 61703 Ash Street

sn: Acelvari

, dn: uid=user.37,ou=people,dc=example,dc=com

st: MN

homePhone: +1 395 800 0815

mail: user.37@maildomain.net

telephoneNumber: +1 293 831 6702

employeeNumber: 37

initials: AXA

mobile: +1 297 338 1047

postalAddress: Adara Absi$77001 Fifteenth Street$Winston, MN 15751

description: This is the description for Adara Absi.

cn: Adara Absi

l: Winston

objectClass: person

objectClass: inetorgperson

objectClass: organizationalperson

objectClass: top

userPassword:: e1NTSEF9SkFaT2F1aGh0TzdleDU1ZEhRRFE3S1J1Y0Q3YkVpeFRiSjh2V3c9PQ==

uid: user.37

pager: +1 508 713 7035

givenName: Adara

postalCode: 15751

street: 77001 Fifteenth Street

sn: Absi

[..]]

We are done, but this was just a basic integration step of OpenDJ with MuleSoft. There is much more you can do with MuleSoft and LDAP. I suggest to take a look at the docs to learn more.

Useful resources

OpenDJ

MuleSoft

Example for Anypoint Connector LDAP
